Aluminum Brushed 19" Motorized Computer Monitor Lift With Infrared Sensor For Hand Protection
Introduction:
Computer monitor lift is a whole complete mechanism integrated with 19inch screen for office audio video system. The monitor could be lift up and flip up 120 degree automatically. Screen would motorized rotate over 120 degree and flip down into the mechanism automatically.
Product supply protect hand from clamping function, adopt infrared ray sensor to provide safe environment for users. Once get stuck by hands, finger or pan during monitor flip up or down process, the mechanism will stop and will continue working if barrier take away. With hand protect function, mechanism provide highest safe operation environment for users.
Computer monitor lift integrated with 19" touch screen. It's a whole complete lifting equipment with media input, like VGA, USB, Audio, Video, HDMI. Could be complicated with Crestron central controller, wireless automatically control system, conference discussion microphone, digital camera and paperless office system.
Feature:
1, Smart computer monitor lift integrated with 19" touch screen.
2, Aluminum oxidation with drawing polishing surface process to make panel and monitor shell smooth and bright, ensure elegant and high grade appearance
3, Provide screen angel adjustable function, to offer prefect reading area for information presentation.
4, Rational design for inner structure; elaborate appearance with ultra-thin design which best reflects dignity, coordinating with home furniture with strong decorative art.
5, Supplied with highest safe operation protection, mechanism adopt infrared ray sensor to provide safe environment for users. During screen motorized flip up or down, it will stop if stuck by hands, finger, pan or book during operation. And will continue working if barrier get always. So it would protect hands or finger from jammed.
6, Electricity supply and shut down design, the screen, keyboard and mouse will be power off once flip down, lifting back to mechanism. And screen, keyboard and mouse will be supplied with electricity if complete open the mechanism.
Parameter:
| Item series | Computer monitor lift |
| item model | BF2-19A |
| Style | monitor flip up lift |
| Monitor | Samsung 19 Inch touch screen |
| Material | Aluminum alloy brushed |
| Panel size | 560*395*6.0mm |
| Box size | 548*375*145mm |
| LCD monitor size | ≤429*278*15mm |
| Panel Cutout size | 562*387*6.0mm |
| Case Cutout size | 548*375*142.5mm |
| Overturn Angle | 100-120° |
| Voltage | 220V/50HZ |
| Power | 15W |
| Single trip time | 25s |
| Working temp | 5~40 |
| Environmental temp | 20~60 |
| Related humidity | 20~80% |
| Color | Brushed aluminum silver |

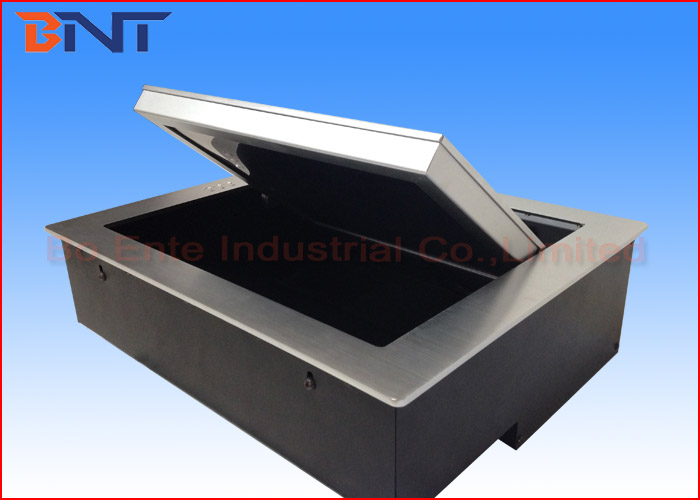

Product Pictures:
